Lever type pressure
plate with heavy increase in pedal pressure, 6 ceramic buttons per side of
disc, 800 hp (good for drag racing) WILL require hydraulic upgrades All the
clutch components in this assembly are made of steel. The center plate is
lugged to fit the flywheel. This complete clutch has no special requirements
for install. It is a direct replacement of the OEM clutch. Dodge 5 speeds
will, however, require a 1 3/8″ input shaft upgrade. All flywheels will
have a bronze/feramic insert that will be removable. This feature will allow
us to replace the insert, instead of the flywheel, when it is time to be
rebuilt. We have variations of friction materials as well as different
sequences of buttons. Please refer to the chart above for the clutch that

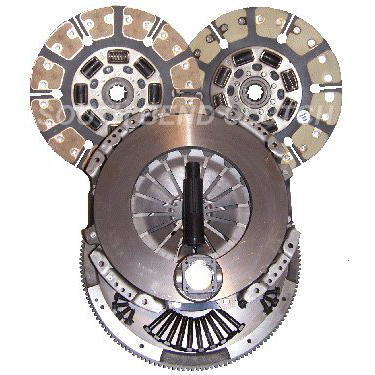

will suit your needs.Details South Bend Clutch Street Dual Disc Clutch Kit
SDD3600-6 This SBC clutch kit is for 2000.5-2005.5 Dodge 24 Valve 5.9L
Cummins 6 Speed NV5600 trucks.FEATURES Rated for 650-750hp – 1200tq
12-Button Performance Organic “O” Style Friction Material Facing Flywheel
and Pressure Plate 12-Button Ceramic Style Friction Material Facing the
Floater Plate Pinned Floater Plate for Decreased Rattle when Disengaged
Neoprene Style Bushing in Center Section of Clutch Discs for Dampening Clutch
Discs are Dampened, Free-Travel Design to Lessen Gear Roll-Over 13 Diaphragm
Style 3600lb Pressure PlateKIT INCLUDES SDD3600 Clutch (Pressure Plate, Two
Discs, Floater Plate, and Flywheel) Clutch Adjustment Tool Bolts Throwout
Bearing To offer the best combination of both drivability and durability,
South Bend Clutch designed the Street Dual Disc series that includes clutch
discs with two different friction materials. The inside of each disc–the
side that faces the floater plate where the most heat is generated–features
durable ceramic friction material. The ceramic buttons can handle up to 1100
degrees. On the outside of the clutch discs–which face the flywheel and the
pressure plate respectively–South Bend Clutch put their performance organic
friction material. This allows for smooth engagement and strong holding power
at the pressure plate and flywheel where the temperature doesn’t get as
high.NOTE This is a Street Dual Disc. This IS NOT a SFI Pulling Clutch.

DodgeCummins
5.92000DodgeCummins 5.92001DodgeCummins 5.92002DodgeCummins
5.92003DodgeCummins 5.92004DodgeCummins 5.92005
