South Bend Clutch HD
Series 1947-OK-HD Performance Clutch and Flywheel425HP  900
Ft. Lbs. TorqueFits 2000.5 – 2005.5 Dodge NV5600 Transmission with
 HO High Output EngineThis is our heavy duty design of our 13″
clutch kit with a 3″ wide premium Organic lining. Perfect for moderate
tuning and heavy towing while maintaining smooth engagement.The South Bend
Clutch HD Series clutch disc features a 13″ double wide, high torque clutch
facings with heavy duty 6 spring dampening system.This clutch is designed for
the moderately increased horsepower trucks, 425 hp 900 torque. offering a
very smooth engagement with light pedal effort.The perfect towing clutch.The
pressure plate comes straight from our street series, dual disc clutch, with
the extra wide casting and heavy duty design.NOTE: It’s very important to
Break-In your clutch with 500 miles of stop and go driving before you pull a
load. Your clutch will last longer if you avoid down-shifting whenever
possible.  Down-shifting flexes the pressure plate, causing uneven
wear.  Just remember, Use your breaks instead–they’re are alot less

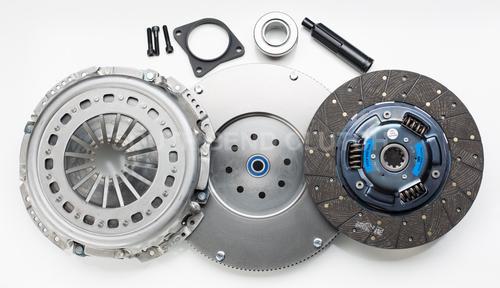

expensive to replace!Includes:*Clutch Package*Flywheel*Alignment
ToolApplication:2000.5-2005.5 Dodge 245hp HO High Output engine with NV5600
TransmissionWarranty: 1 year, 12,000 miles, whichever comes first,
manufacturer defects only.Sale Price is set at lowest legal limit!Any
Purchase of these clutches at a lower price (from anywhere) will void your
South Bend warranty. 715-824-5051 South Bend Clutch Dyna Max organic
clutch kits are manufactured with performance organic friction material.
Designed to provide smooth clutch engagement, South Bend Clutch Dyna Max
organic clutch kits include everything you need to do the job, including
KEVLAR® pilot bushings. These kits are available for a variety of
applications with or without a flywheel.FeaturesInput Spline Quantity:
10Input Shaft Diameter: 1.375 in.Disc Diameter (in): 13.000 in.Disc Diameter
(mm): 330mmDisc Material: OrganicDisc Style: Full face, sprung hubPressure
Plate Style: DiaphragmThrowout Bearing Included: YesThrowout Bearing Style:
StandardAlignment Tool Included: YesPilot Bushing Included: YesPilot Bushing
Material: SteelFlywheel Included: YesFlywheel Material: SteelCounterweight
Assist: NoMounting Hardware Included: YesQuantity: Sold as a kit.Notes:
NV5600 245 horsepower HO transmission. Recommended for use up to 425
horsepower, 900 lbs. of torque.

DodgeCummins
5.92000DodgeCummins 5.92001DodgeCummins 5.92002DodgeCummins
5.92003DodgeCummins 5.92004DodgeCummins 5.92005
