Application:  1998.5 Dodge RAM Cummins 5.9L ISB. 24 Valve
Engine with 47RE Automatic Transmission.Notes:  For vehicles in which the factory HX/HY35
turbo charger has been changed to an aftermarket turbo charger, use this
inline kit. A mounting group must be purchased with the kit Exhaust size :
4” – C11400, 3.5” – C11420, 3” – C11440Air Actuated – Comes

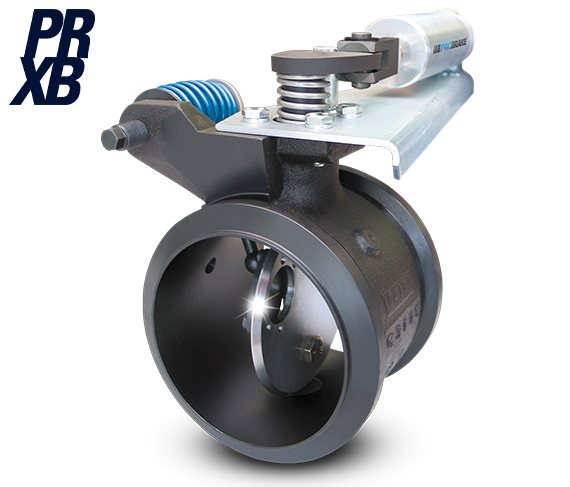

with Air Tank, Hose and Accessories. Pacbrake’s InLine Mount 4”
PRXB Exhaust Brake KitPRXB offers the highest braking power to lowest price
ratio available. Pacbrake’s flagship product is the unquestioned leader in
the supplemental brake industry. It has changed the way people think about
exhaust brakes by providing performance, safety and durability that is
unmatched by any other exhaust brake on the market.PRXB FEATURESThe spring
controlled pressure regulated mechanism on the exhaust brakes protects
against engine overpressurePacbrake exhaust brakes are designed specifically
for individual engine applications to maximize performance and reliability.
They are not a one size fits all compromiseWhen the brake is deactivated,
exhaust flow is unrestricted and won’t interfere with power output Patented
90 degree Non-contacting Butterfly Valve is specially engineered to maximise
backpressure while preventing seizingThe brakes use industry exclusive Arcor
nitride coating on housing and components which increases resistance to wear
and corrosion while strengthening the exhaust brake and adding
lubricityPrecision machined surfaces on the exhaust brake eliminate the need
for troublesome gaskets and risk of leakageThe brakes have hard anodized
aluminum and stainless steel body and shaft with high performance
sealsMaintenance is as simple as using the exhaust brake on a regular basis
and periodically applying Superlube (Pacbrake’s multi-purpose heat
resistant lubricant which helps to prevent rust and corrosion)Withstands
extremely high exhaust temperaturesCompliant with latest emission
regulationsSevere duty & military approvedPRXB BENEFITSDelivers the
strongest braking horsepower, greatest speed reductions & shortest
stopping distances possible without the use of service brakesMaintains
optimum retarding performance by maximizing the exhaust backpressure
throughout the entire operating RPM rangeDelivers maximum exhaust pressure
(braking) as low as 1200 RPM through to the maximum allowable engine
RPMProvides increased performance and peace of mind with technology that
protects the engine from the potential of overpressureKIT CONTENTS:Every PRXB
Automotive Kit comes with everything required for a complete installation.
PRXB Exhaust Brake, Controller (when required for application) and AMP Onboard
Air Kit, which includes: HP325 Series Compressor, 0.5 Gal Air Tank, 25ft
Coiled Air Hose, Air Accessories and Fittings Kit.Upgrade any standard
exhaust brake to a PRXB for an improved design and a longer lasting brake
with significantly increased performance. Tow & haul with complete
control.

DodgeCummins 5.91998
