Application:  1994 – 1995 Dodge RAM Cummins 5.9L 6BT 12
Valve Engine with 3” Stock Exhaust with HX/HY35 Turbo with 47RH Automatic
Transmission. (MAX FLOW DESIGN)Notes:
For – 47RH Auto Trans with 3” Stock Exhaust with HX / HY35 Turbo.
All 1994-2002 trucks using a DirectMount kit that have 4” aftermarket
exhaust systems require an additional adapter C11342. Air Actuated – Comes

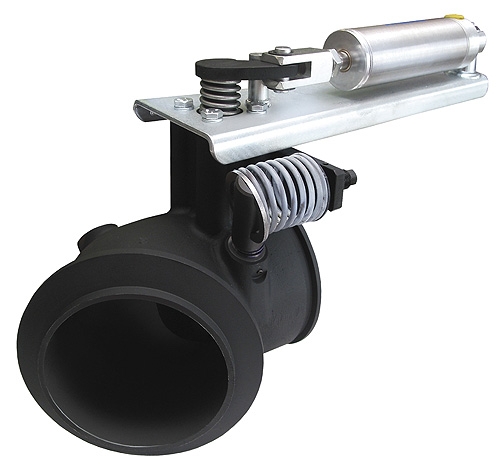

with Air Tank, Hose and Accessories.Pacbrake’s DirectMount 4” PRXB
Exhaust Brake Kit with MAX FLOW DesignPRXB offers the highest braking power
to lowest price ratio available. Pacbrake’s flagship product is the
unquestioned leader in the supplemental brake industry. It has changed the way
people think about exhaust brakes by providing performance, safety and
durability that is unmatched by any other exhaust brake on the market.PRXB
FeaturesThe spring controlled pressure regulated mechanism on the exhaust
brakes protects against engine overpressurePacbrake exhaust brakes are
designed specifically for individual engine applications to maximize
performance and reliability. They are not a one size fits all compromiseWhen
the brake is deactivated, exhaust flow is unrestricted and won’t interfere
with power output Patented 90 degree Non-contacting Butterfly Valve is
specially engineered to maximise backpressure while preventing seizingThe
brakes use industry exclusive Arcor nitride coating on housing and components
which increases resistance to wear and corrosion while strengthening the
exhaust brake and adding lubricityPrecision machined surfaces on the exhaust
brake eliminate the need for troublesome gaskets and risk of leakageThe
brakes have hard anodized aluminum and stainless steel body and shaft with
high performance sealsMaintenance is as simple as using the exhaust brake on
a regular basis and periodically applying Superlube (Pacbrake’s
multi-purpose heat resistant lubricant which helps to prevent rust and
corrosion)Withstands extremely high exhaust temperaturesCompliant with latest
emission regulationsSevere duty & military approvedPRXB BenefiTsDelivers
the strongest braking horsepower, greatest speed reductions & shortest
stopping distances possible without the use of service brakesMaintains
optimum retarding performance by maximizing the exhaust backpressure
throughout the entire operating RPM rangeDelivers maximum exhaust pressure
(braking) as low as 1200 RPM through to the maximum allowable engine
RPMProvides increased performance and peace of mind with technology that
protects the engine from the potential of overpressureKit Contents:Every PRXB
Automotive Kit comes with everything required for a complete installation.
PRXB Exhaust Brake, Controller (when required for application) and AMP
Onboard Air Kit, which includes: HP325 Series Compressor, 0.5 Gal Air Tank,
25ft Coiled Air Hose, Air Accessories and Fittings Kit.Upgrade any standard
exhaust brake to a PRXB for an improved design and a longer lasting brake
with significantly increased performance. Tow & haul with complete
control.Â
