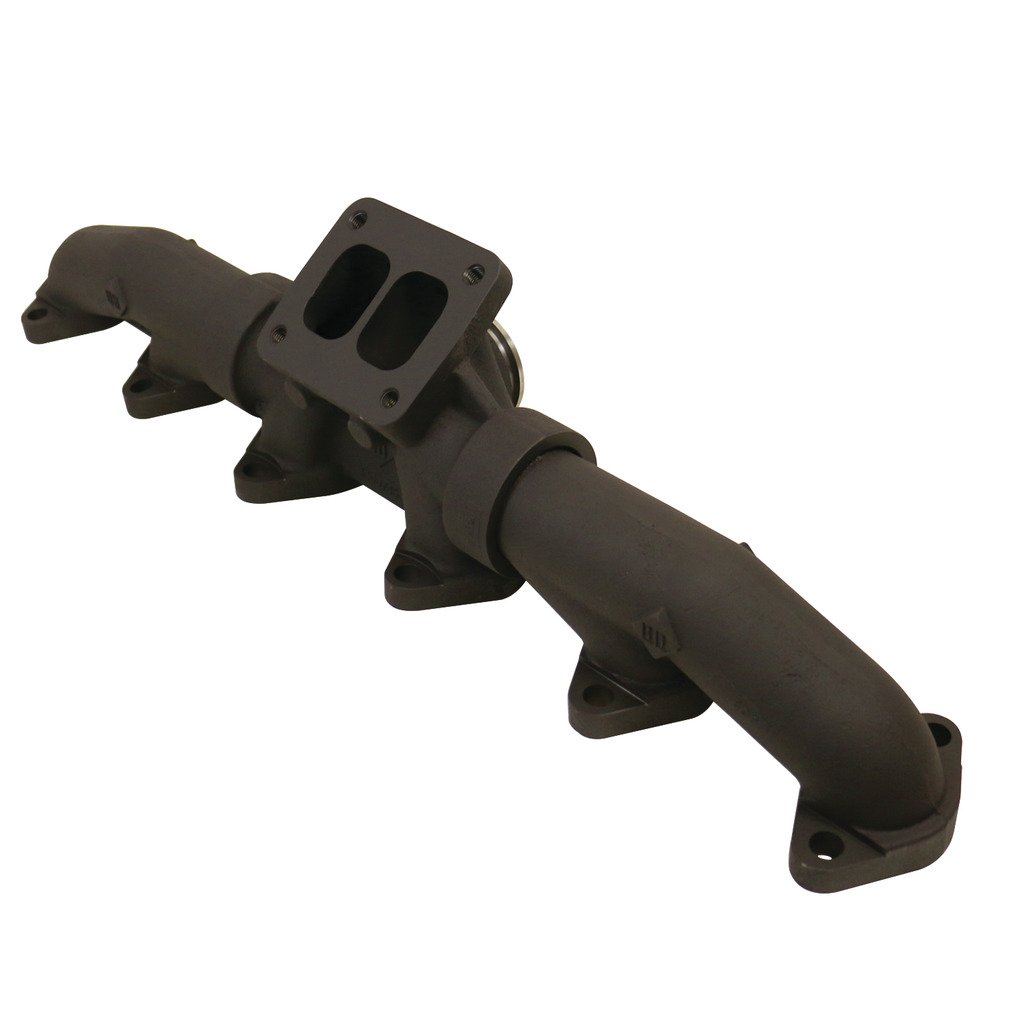

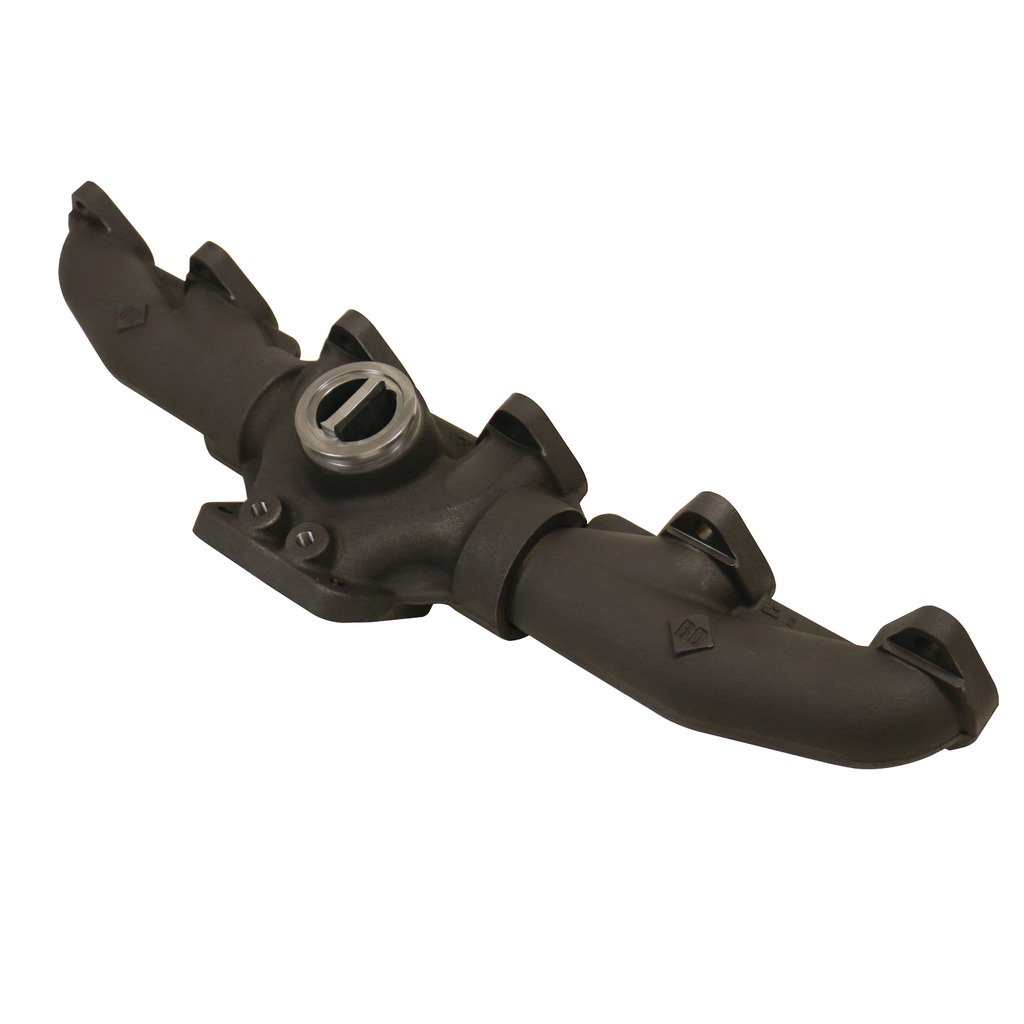

Protect your turbocharger with a performance
manifold designed with a waste gate in mind. Cast and machined wastegate port
completely divides the manifold into two sections to retain the divided pulse
manifold flow. Internal geometry is optimized through Computational Fluid
Dynamics (CFD), which increases flow throughout the RPM band for your high
flowing T4 of T6 based turbo. Thick-wall cast high silicone ductile iron
retains heat energy. Precision slip joints allow the manifold to expand and
contract, which reduces cyclic thermal fatigue and greatly increase manifold
longevity. 1/8-NPT ports are pre-drilled and tapped.

Better cylinder exhaust evacuation to keep EGTs down
Extracts exhaust pulses for quicker turbo spool
Machined for use with 45mm Hyper Gate or Turbo Smart
Block off plate and clamp provided
Gate port area is 1.67 sq. in. (33%)
Improves turbo response
Thick walled high silicone casting for long lasting durability
High temperature POR 15 paint
Pre-drilled for pyrometer probes and pressure gauges
Gaskets are available separately
