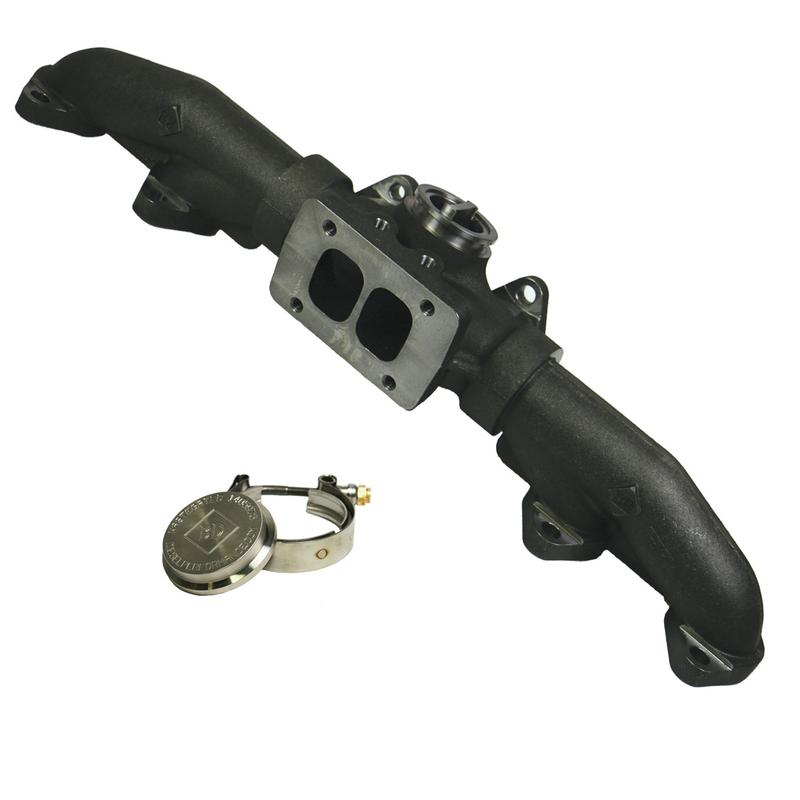

Protect your
turbocharger with a performance manifold designed with a waste gate in mind.
Cast and machined wastegate port completely divides the manifold into two
sections to retain the divided pulse manifold flow. Internal geometry is
optimized through Computational Fluid Dynamics (CFD), which increases flow
throughout the RPM band for your high flowing T4 of T6 based turbo.
Thick-wall cast high silicone ductile iron retains heat energy. Precision
slip joints allow the manifold to expand and contract, which reduces cyclic
thermal fatigue and greatly increase manifold longevity. 1/8-NPT ports are
pre-drilled and tapped.

Gaskets are available separately
Better cylinder exhaust evacuation to keep EGTs down
Combustion Pulse remains constant with the W/G valve closed
Machined for use with 45mm Hyper Gate or Turbo Smart
Block off plate and clamp provided
Gate port area is 1.67 sq. in. – 33% of T4 / 12% of T6 inlet
Improves turbo response
